Air Handlers

Engineered for quiet efficiency

No matter your home’s arrangement, our RunTru air handlers are engineered to accomplish the task quietly, efficiently and affordably.

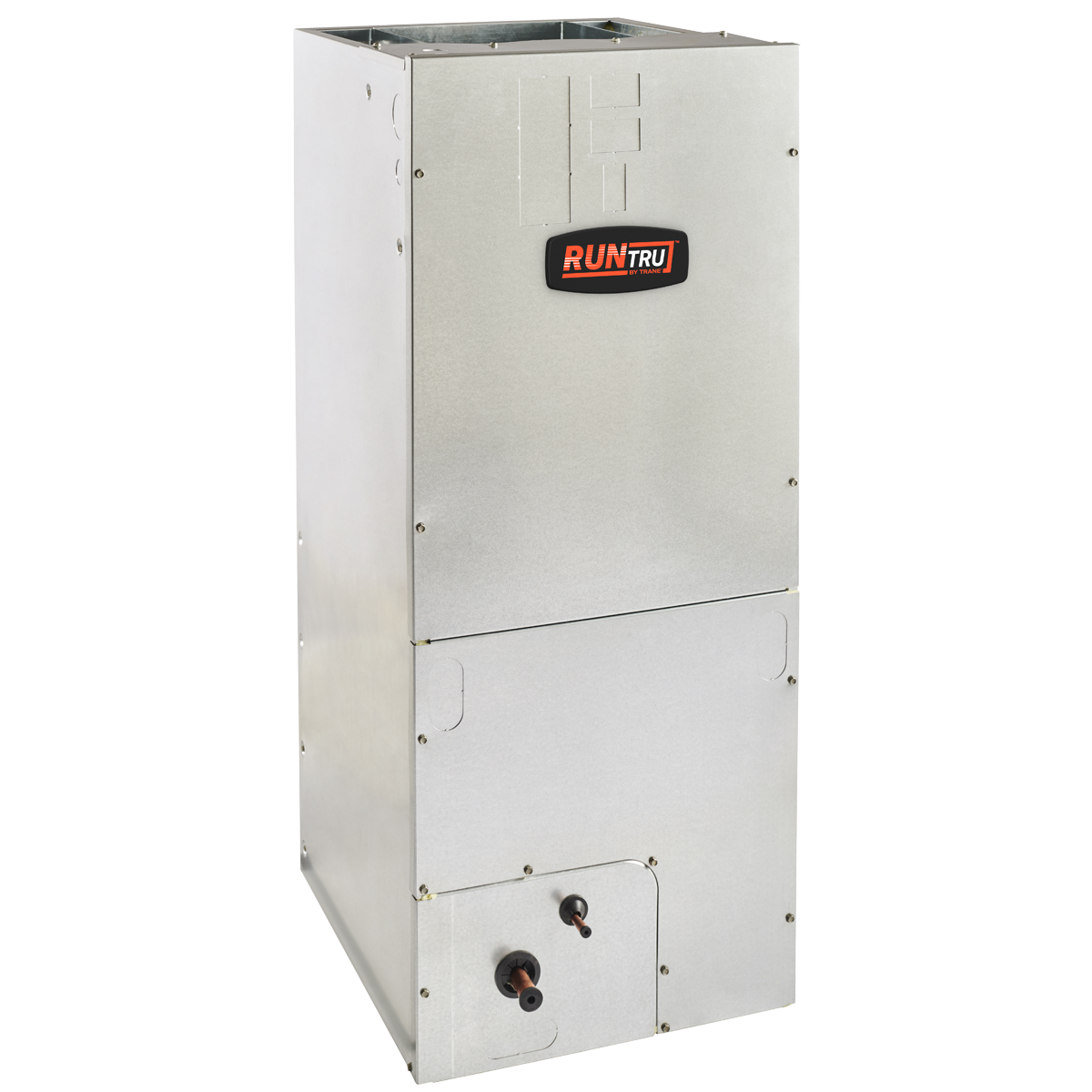

A4AH4 Air Handler

All-aluminum coil
Factory-installed flow control to support ratings
Fully insulated galvanized steel cabinet
Multi-speed fan motors
Assembled in Vidalia, Georgia

A4AH4 Multi-Position Air Handler

Model	Capacity (Tons)	Motor Type	Flow Control	Electric Heat	Dimensions (in)
Model	Capacity (Tons)	Motor Type	Flow Control	Electric Heat	H	W	D
A4AH4E24A1B60A	2	CTM	Orifice	Field Installed	45.02	18.50	21.13
A4AH4E30A1B30A	2.5	CTM	TXV	Field Installed	45.02	18.50	21.13
A4AH4E36A1C30A	3	CTM	TXV	Field Installed	45.02	18.50	21.13
A4AH4E42B1C30A	3.5	CTM	TXV	Field Installed	51.27	23.50	21.13
A4AH4E48B1C30A	4	CTM	TXV	Field Installed	51.27	23.50	21.13
A4AH4E60B1C30A	5	CTM	TXV	Field Installed	51.27	23.5	21.13

RunTru Limited Warranty: 5-year limited warranty for functional parts 10-year warranty for functional parts with registration 20-year warranty for heat exchanger

Find out more about the RunTru Limited Warranty here.

A4AH5 Air Handler

All-aluminum coil
Factory-installed flow control to support ratings
Fully insulated galvanized steel cabinet
Multi-speed fan motors
Assembled in Vidalia, Georgia

A4AH5 Multi-Position Air Handler

Model	Capacity (Tons)	Motor Type	Flow Control	Electric Heat	Dimensions (in)
Model	Capacity (Tons)	Motor Type	Flow Control	Electric Heat	H	W	D
A4AH5E19A1B30A	1.5	ECM	TXV	Field Installed	45	18.5	21
A4AH5V24A1B30A	2	ECM	TXV	Field Installed	46.8	18.5	21
A4AH5E31A1B30A	2.5	ECM	TXV	Field Installed	46.8	18.5	21
A4AH5V30A1B30A	2.5	ECM	TXV	Field Installed	46.8	18.5	21
A4AH5V36A1C30A	3	ECM	TXV	Field Installed	51.3	23.5	21
A4AH5E43A1C30A	3.5	ECM	TXV	Field Installed	51.3	23.5	21
A4AH5V42A1C30A	3.5	ECM	TXV	Field Installed	51.3	23.5	21
A4AH5E49A1C30A	4	ECM	TXV	Field Installed	57.5	23.5	21.1
A4AH5E61A1C30A	5	ECM	TXV	Field Installed	55.9	23.5	21
A4AH5V48A1C30A	4	ECM	TXV	Field Installed	55.9	23.5	21

RunTru Limited Warranty: 5-year limited warranty for functional parts 10-year warranty for functional parts with registration 20-year warranty for heat exchanger

Find out more about the RunTru Limited Warranty here.

E4AH5 Air Handler </br>(for E4HL5 Side Discharge Heat Pump only)

E4AH5 Air Handler
(for E4HL5 Side Discharge Heat Pump only)

All-aluminum coil
Factory-installed flow control to support ratings
Upflow, horizontal right/left
Fully insulated galvanized steel cabinet
Multi-speed fan motors

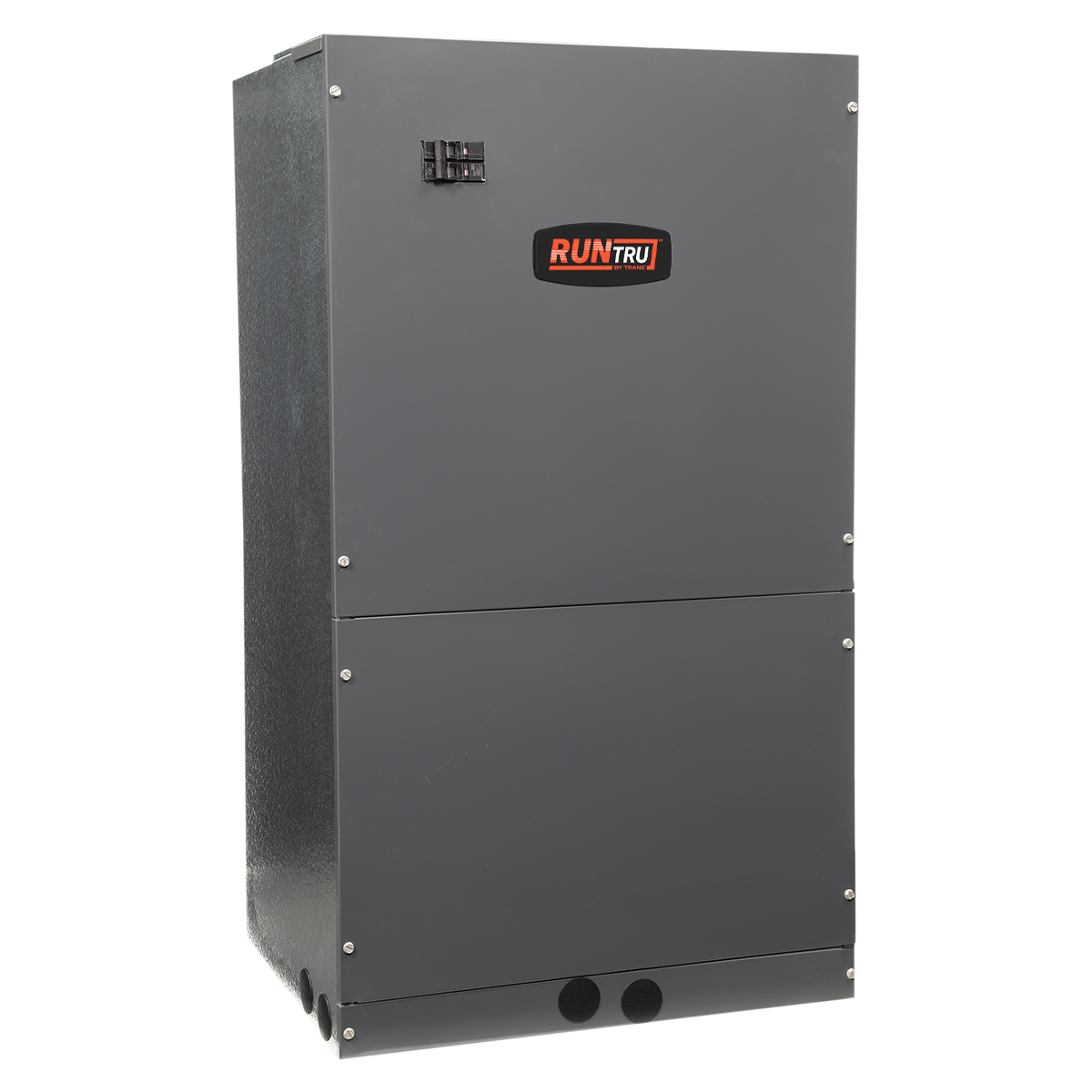

TMM4/TMM5 Air Handler

All-aluminum coil
Galvanized steel cabinet
No-rust drain pan
Small footprint for tight spaces

TMM4 Air Handlers

Model	Dimensions (in)
Model	H	W	D
TMM4B0A18S21SA	36.5	20.5	15
TMM4B0A24S21SA	36.5	20.5	15
TMM4B0B30S21SA	39.5	22	19
TMM4B0B36S31SA	39.5	22	19

TMM5 Air Handlers

Model	Dimensions (in)
Model	H	W	D
TMM5B0A24M21SA	36.5	20.5	15
TMM5B0B30M21SA	39.5	22	19
TMM5B0B36M31SA	39.5	22	19

RunTru Limited Warranty: 10-year limited functional parts warranty No registration required

Find out more about the RunTru Limited Warranty here.
