Indoor Air Coils

Long-term performance and efficiency

In any season, our all-aluminum RunTru indoor air coils stand up to year-round use. Our low-cost coils are engineered to excel with long-term performance and efficiency.

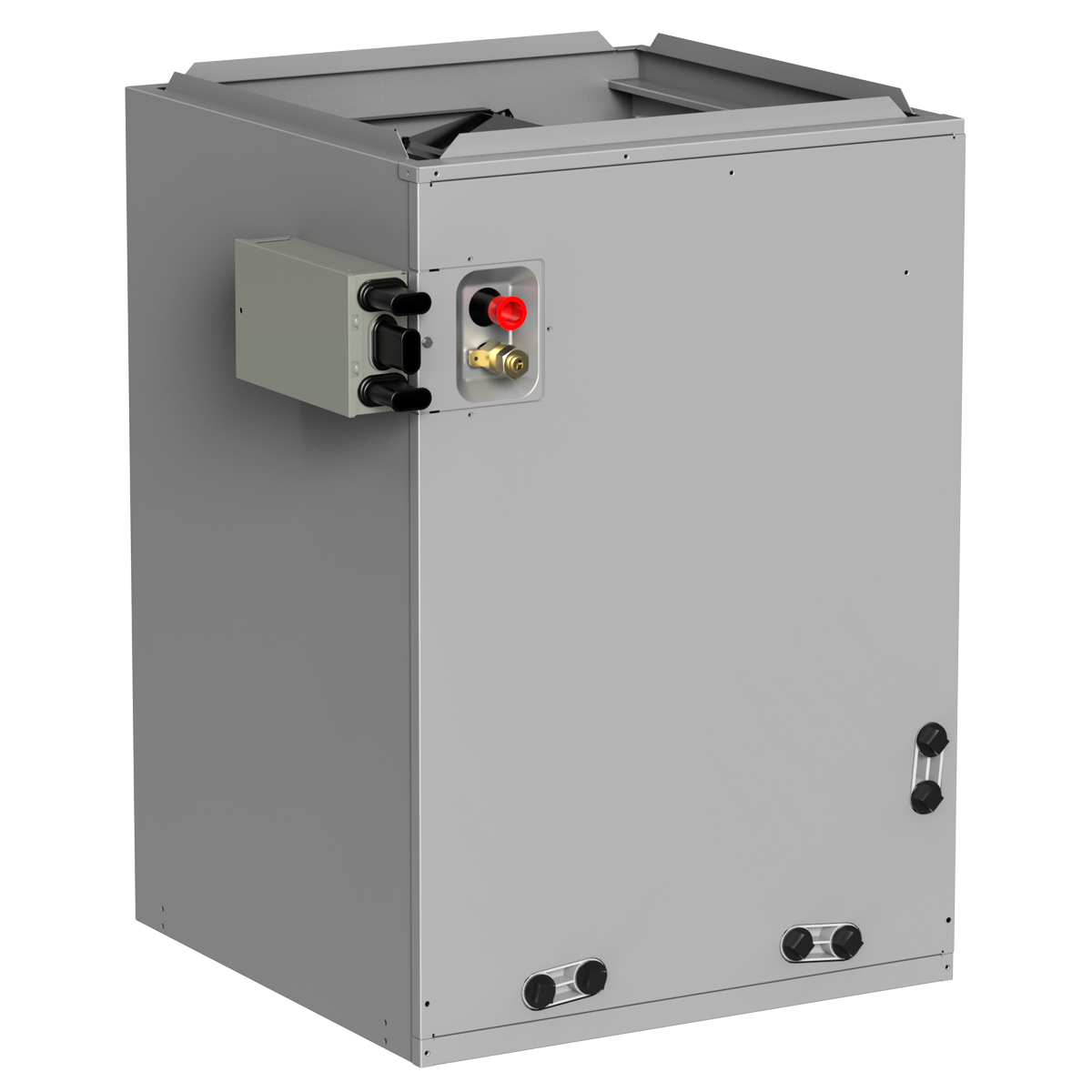

5MXC Indoor Air Coil

Utilizes R-454B Refrigerant
Multi-position
All-aluminum coil
Fully insulated cabinet
High-temp double-sloped drain pan
Factory installed fixed metering device (Flow Control Check Valve (FCCV))
Cooling and heat pump compatible
Approved for manufactured/mobile housing
Factory installed Refrigerant Detection System (RDS)

To minimize environmental impacts, the HVAC industry is transitioning to Lower Global Warming Potential (GWP) refrigerants. RunTru’s newest lineup of equipment designs are tagged with our two-tone green icon for easy identification.

4MXC Indoor Air Coil

Multi-position
All-aluminum coil
Fully insulated galvanized steel cabinet
High-temp double-sloped drain pan
Factory installed flow controls
Cooling and heat pump compatible
Approved for manufactured/mobile housing

4MXC Indoor Air Coils

Model	Capacity (Tons)	Flow Control	Dimensions (in)
Model	Capacity (Tons)	Flow Control	H	W	D
4MXCA003AC6HCA	1.5-3.0	Orifice	20.0	14.5	21.0
4MXCB004AC6HCA	1.5-3.0	Orifice	20.0	17.5	21.0
4MXCC005AC6HCA	1.5-3.0	Orifice	20.0	21.0	21.0
4MXCB006AC6HCA	2.5-4.0	Orifice	26.0	17.5	21.0
4MXCC007AC6HCA	2.5-4.0	Orifice	26.0	21.0	21.0
4MXCD008AC6HCA	2.5-4.0	Orifice	26.0	24.5	21.0
4MXCC009AC6HCA	3.5-5.0	Orifice	30.0	21.0	21.0
4MXCD010AC6HCA	3.5-5.0	Orifice	30.0	24.5	21.0
4MXCB016AC6HCA	2.0-4.0	Orifice	30.0	17.5	21.0
4MXCC017AC6HCA	2.5-4.0	Orifice	30.0	21.0	21.0
4MXCD018AC6HCA	3.0-4.0	Orifice	30.0	24.5	21.0

RunTru Limited Warranty: 10-year limited functional parts warranty No registration required

Find out more about the RunTru Limited Warranty here.
